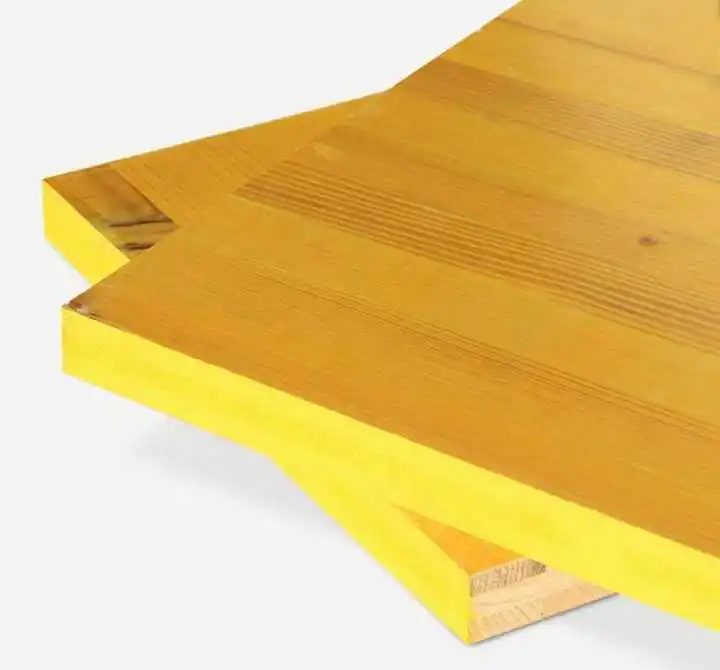

21mm 27mm Wooden 3 Layer Yellow Formwork Board

Specifications:

Wood type: spruce and red fir

Wood humidity: 12% +/-2%

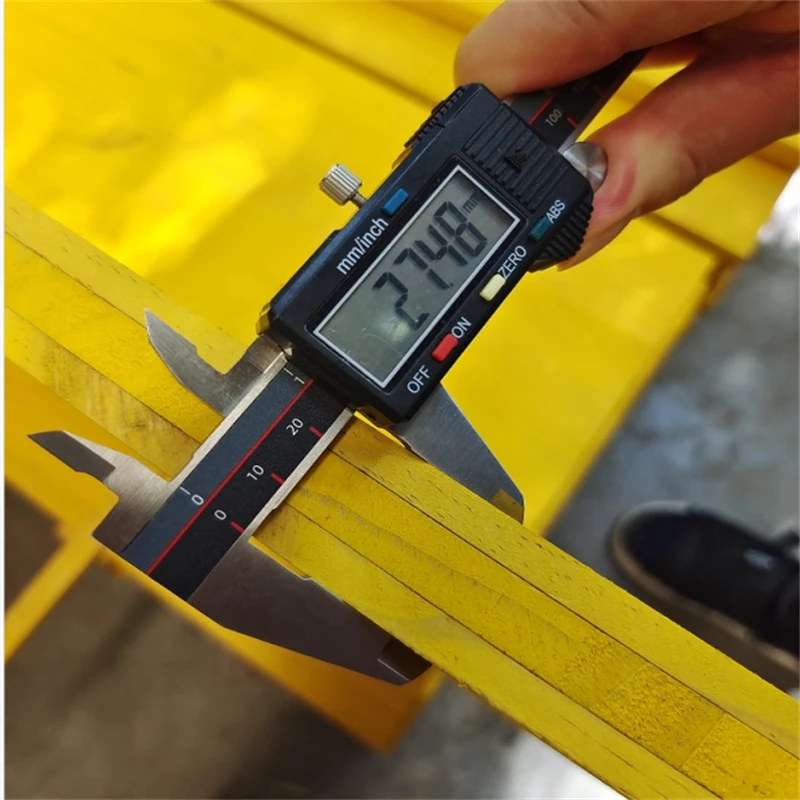

Thickness: 21mm; 27mm

Weight:

21 mm = 10 kg/m2;

27 mm = 12.3 kg/m2;

Protection surface: highly resistant melamine resin coating

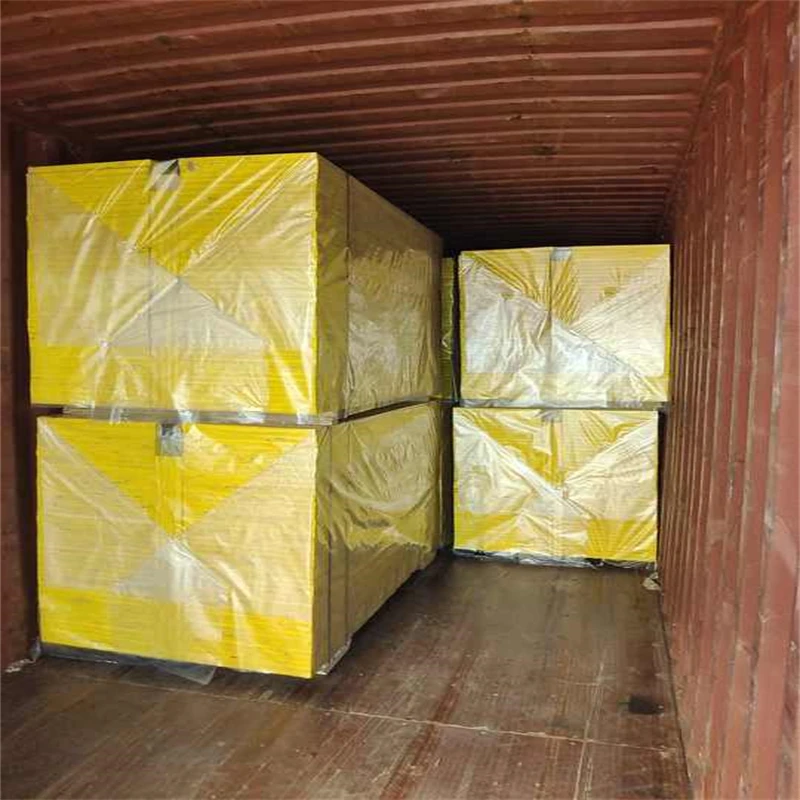

Standard packaging:

21 mm: 100 pcs per package

27 mm: 80 pcs per package

3-PLY Formwork Panels CLASS A

formwork 3ply panels are built with three layers of wood obtained from fir and spruce trees grown in sustainable forests.

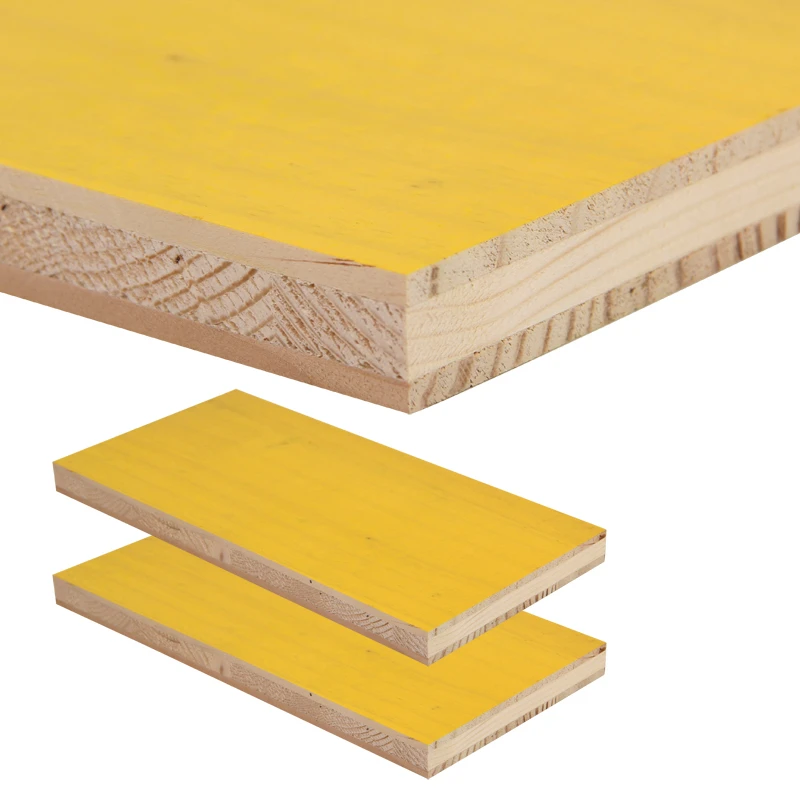

STRUCTURE:

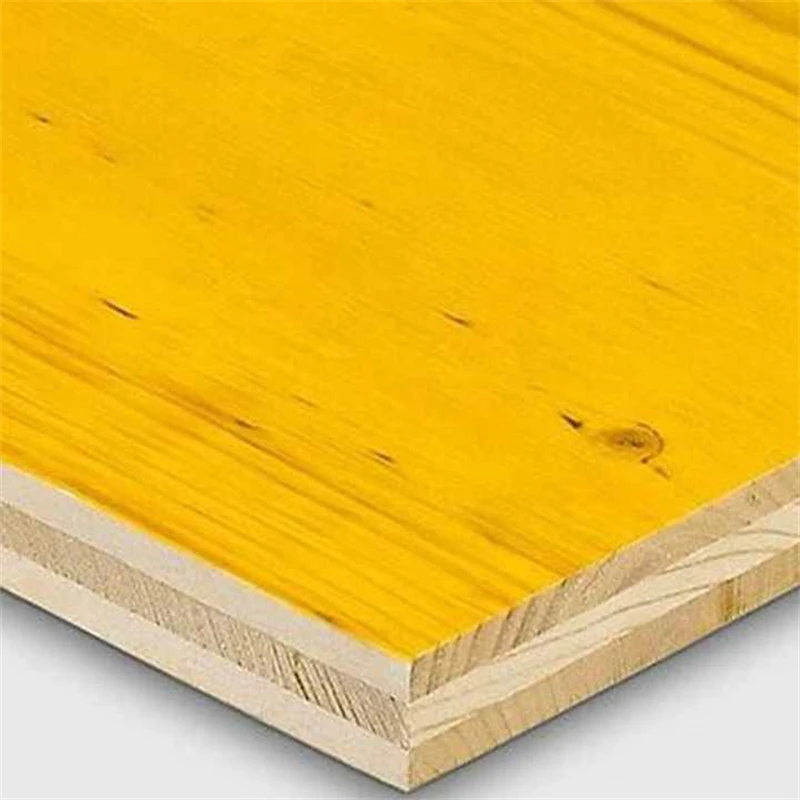

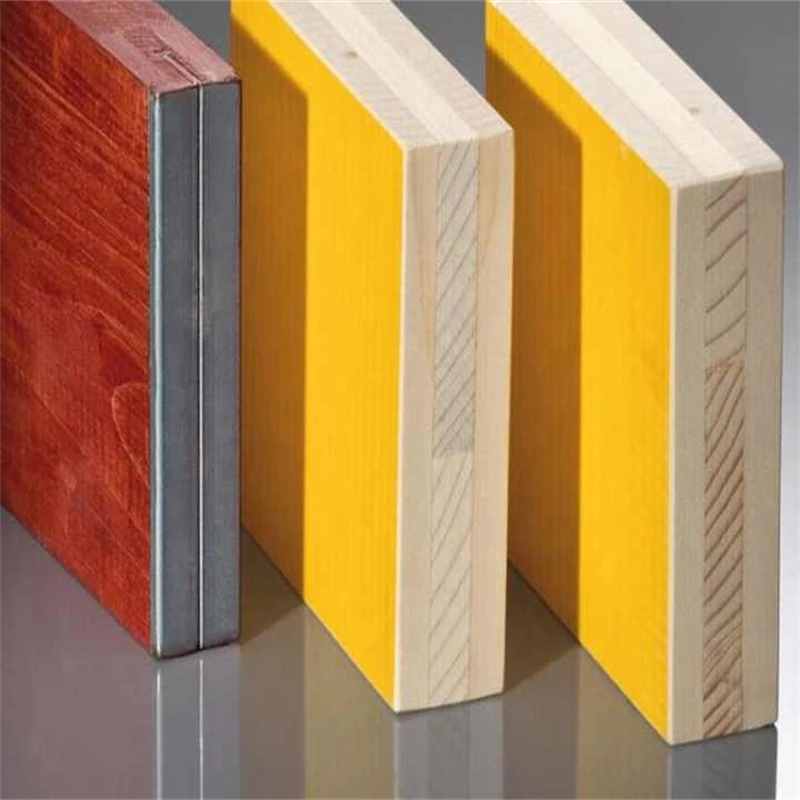

Our panels are made with a 3-ply structure 9+9+9 mm, without frame.
This means that the mechanical properties of our panel are the same and unchanged even if you cut the panel.
The outer plies that are in touch with the concrete are thicker (9mm vs 6mm) and will allow the panel to last longer.
Lamellas of GBM panels are prepared from a glulam monolitic beam having a smaller width which improves the resistance of the panel and automatically reduces the maximum dimension of accepted knots.

SURFACE FINISH:

Our panels have a melamin finish, just like other panels, but having a greater quality of raw material we can provide it with natural color finish. Of course we can also provide with the classic yellow finish.
The reason why yellow is used is to cover possible aestethical defects of the wood, because yellow tends to uniform the view.
We are sure enough of our quality that we offer it with natural finish. This finish is also optimal for at sight concrete.

EDGES:

We are introducing a polyuretane protection on the longitudinal edges as an optional. This option will allow a perfect smooth contact of the panels edges and it will improve the concrete finish.

CUSTOMIZATION:

We can customize our panels with the following options:

Name printed on the top face of each panel - standard will be with day and hour of production for perfect production tracking;

Name / logo printed on each bundle

Selection of colors for the edges.

Company Information

Shandong Jike Wood Co., Ltd. is located in Linyi City, Shandong province, China, and specializes in the exporting business of plywood and other building materials. We hold our own Plywood and Furniture decorative Factory. Linyi city is a beautiful place and it is famous for plywood. Yi River is sleeping quietly near our side, as we have been hearing her singing for several hundreds of years. Convenient Traffic: Lunan railway and 310 State Road are in the vicinity of our factory. To the east, the International airport of Linyi is 30km away; Linyi High-speed rail Port is 30km away; and Qingdao Port is 200km away. The goods can be transported within 3 hours to 6 hours.

Our equipment ranges from the peeler compositors, press driers, both side calibrators, 3-shelf sanders to container loading platforms. The equipment makes our products more accurate and standardized. Scientific processes, High quality to ensure high quality: We have been developing and applying the scientific production processes, and managing them strictly. We have set up scientific test and sorting systems according to your requirements. We are managing the mill according to ISO9001 standard and all our production processes are controlled according to CE standard. We provide high-quality products with reasonable prices for each of our customers. Customers are paramount. We take all possible means to satisfy your individual demand. Monthly Capacity: We have three complete production lines, and we can produce and supply 6000 cubic meters of plywood per month. JIKE wood mainly uses poplar as the main raw material, specializing in the production of UV board, HPL fire board, BS1088 marine board, high-grade furniture board and so on.

Until today JIKE wood have obtained the CARB, NAUF ,FSC ,ISO 9001 and CE certifications, etc.

Our products are mainly used for low formaldehyde in various furniture and interior decoration. The main varieties are: UV board, fire board, high-grade furniture board including many type face (birch, pine, oak, ash, okoume, pencil cedar, bintangor, poplar core etc.) plywood. The products are mainly sell to United States, Europe, Australia and the Middle East.

JIKE wood focus on the quality of plywood which win much reputation from all over world

Shandong Jike Wood Co., Ltd. Address: Zhubao Town, Lanshan District, Linyi City, Shandong Province.
